Fluorosilicone Diaphragm 600VF Venturi Gas Mixer

Name: Fluorosilicone Diaphragm 600VF Venturi Gas Mixer
Brand: IMPCO
Price: 1 USD

Brand Name : IMPCO

Model Number : 600VF

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Part Description : Carburetor/Mixer

Gas Type : Varifuel

Mounting Position : Various (updraft, downdraft, side draft)

Diaphragm Material : Fluorosilicone

Contact Now

Varifuel Mixer , Concentric Flow Type Air Valve Up To 447.4kW , Ordered In Modular Components

The Model 600VF mixer is a concentric flow type air valve carburetor with a precision gas metering valve attached to the air valve for applications requiring up to 960 CFM (453.1 L/s). The air valve and gas valve motion is linear in relation to the volumetric flow. The air/fuel ratio is controlled by the adjustable power valve and the shape of the gas metering valve and the pressure from the gas regulator.

Gas valve and jet combinations may be selected to meet various fuel and burn strategies. The gas valves and jets are easily replaced to provide performance as defined by each customer or meet specific emission levels. Gas valves and jets can be ordered in matching sets (see page 122). These units are designed for 14,000 MTBF (mean time between failures). Advanced guide bushing material provides a more durable solution over the standard 600 carburetor.

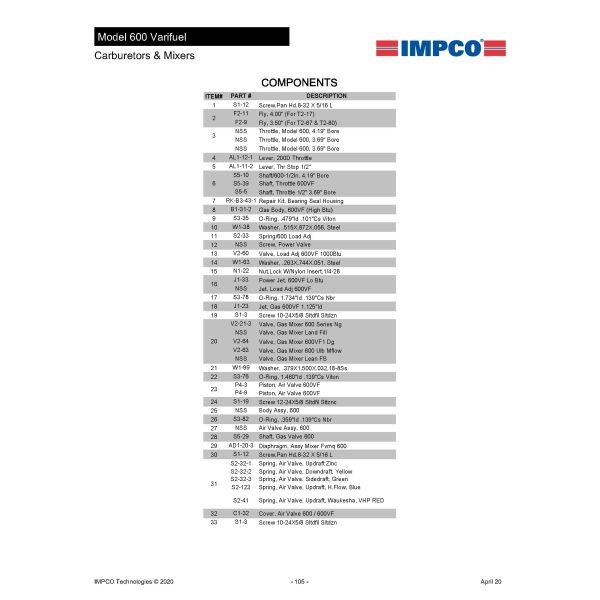

The 600 Varifuel Mixer is not available as an assembly, but it is ordered in modular components to be assembled to the desired configuration.

SPECIFICATIONS
Fuel Type
LPG Vapor	90% + Propane
Natural Gas	85% + Methane
Digester Gas	56-72% Methane
Landfill Gas	45-56% Methane
Inlet Pressure	+5.0” w.c. (1.24 kPa) over Air Inlet (Idle Setting)
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Mounting Position	Various (updraft, downdraft, side draft)
Diaphragm Material	Fluorosilicone
HP/kW Rating	600 HP (447.4 kW) @ 960 CFM (453.1 L/s) and 2.0” Hg manifold Depression
